The OFSCN® 100°C Capillary Seamless Steel Tube Fiber Bragg Grating Temperature Sensor is composed of fiber connectors (FC, SC, LC, ST, etc.), stainless steel seamless tubes, and single-point/serial fiber bragg gratings (FBG) encapsulation. The FBG is written using the ultraviolet light mask method, and the fiber used is standard single-mode fiber.
It is a FBG sensor with high sensitivity, fast thermal conductivity, good accuracy, small size, light weight, high tensile and compressive strength, high temperature resistance, waterproof and moisture-proof properties, non-combustible materials, and corrosion resistance.
By utilizing the temperature sensing characteristics of the FBG, this sensor can be inserted, clamped, surface-mounted, adhesive-mounted, or embedded into the tested structure for temperature detection and monitoring. It can be widely used in industrial production, power, railway, military, aerospace, and other fields for single-point or quasi-distributed temperature measurement.
 |
The OFSCN® 100°C Capillary Seamless Steel Tube Fiber Bragg Grating Temperature Sensor can be packaged with either a single-point or a multipoint FBG array.
Although this product is defined as a 100°C sensor, it can be repeatedly used at temperatures up to 150 degrees Celsius (continuous usage at 100 degrees Celsius). From a principle and practical measurement standpoint, this fiber Bragg grating temperature sensor is a universal product and does not have compatibility issues with FBG demodulation equipment. With a matching FBG interrogator, this product can also be called an industrial capillary thermometer.
 |
| OFSCN® Capillary Seamless Steel Tube Fiber Bragg Grating Temperature Sensor (Single-Point ) |
 |
| OFSCN® Capillary Seamless Steel Tube Fiber Bragg Grating Temperature Sensor (FBG String/Array inside) |
Overall Parameters of the 100°C Fiber Bragg Grating Temperature Sensor:
|
Fiber Bragg Grating Temperature Sensor Brand |
OFSCN® |
|
Fiber Bragg Grating Temperature Sensor Product Name |
OFSCN® 100°C Capillary Seamless Steel Tube Fiber Bragg Grating Temperature Sensor |
|
Fiber Bragg Grating Temperature Sensor Model |
BNCG-SFBG-SH100-01-FC/APC-10M (Numerous models available, example only) |
 |
Product Structure: Prefabricated fiber connector + 0.9mm stainless steel seamless tube + single-point/multipoint fiber Bragg grating + rear-end welding. |
|
※ Length Range of Fiber Bragg Grating Temperature Sensor |
10 centimeters to tens of meters (specific length depends on stock availability). |
Parmeters of FBG Used in the 100°C FBG Temperature Sensor:
 |
| Single-point Fiber Bragg Grating |
 |
| Multipoint Fiber Bragg Grating String/Array |
|
Fiber Type Used for Fiber Bragg Grating (FBG) |
SMF-28E |
|
Fabrication Method of Fiber Bragg Grating (FBG) |
Ultraviolet light mask |
|
Center Wavelength of Fiber Bragg Grating (FBG) |
Typically 1525nm to 1565nm (custom wavelengths available) |
|
Reflectivity of Fiber Bragg Grating (FBG): |
10% to 99% |
|
Temperature Range of Fiber Bragg Grating (FBG)
|
-40°C to 150°C (this product can be repeatedly used up to 150 degrees Celsius but should not be continuously exposed to this temperature. It can be used continuously in a 100°C environment). |
|
※ Optional Features for Fiber Bragg Grating (FBG) |
There are numerous options available, direct communication is necessary. |
Indicators for Fiber Connectors Used in the 100°C FBG Temperature Sensor:
 |
 |
|
Fiber Connector Types for Fiber Bragg Grating Temperature Sensor |
FC、ST、SC、LC |
|
|
Fiber Connector Endface Types for Fiber Bragg Grating Temperature Sensor |
APC |
PC |
|
Fiber Connector Insertion Core Material for Fiber Bragg Grating Temperature Sensor |
Ceramic | |
|
Fiber Connector Insertion Loss for Fiber Bragg Grating Temperature Sensor |
<0.2db |
<0.2db |
|
Fiber Connector Return Loss for Fiber Bragg Grating Temperature Sensor |
>-60db |
>-40db |
|
Fiber Connector Storage Environment for Fiber Bragg Grating Temperature Sensor |
-40℃ to +85℃ |
|
|
Fiber Connector Operating Environment for Fiber Bragg Grating Temperature Sensor |
-40℃ to +75℃ |
|
|
※Optional Features for Fiber Connectors |
FC/APC, FC/PC high-temperature-resistant connectors (availability depends on stock) |
|
Armor and Tail-End of the 100°C Fiber Bragg Grating Temperature Sensor:
 |
 |
|
Armor Type for Fiber Bragg Grating Temperature Sensor |

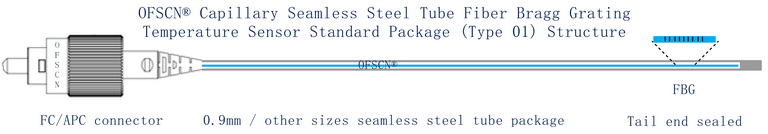

OFSCN® Capillary Seamless Steel Tube Fiber/Fiber Bragg Grating Sensor Standard Packaging (Type 01) |
|
Armor Diameter of Fiber Bragg Grating Temperature Sensor |
0.9mm |
|
Material of Seamless Steel Tube Used for Fiber Bragg Grating Temperature Sensor |
304 stainless steel |
|
Wall Thickness of Seamless Steel Tube Used for Fiber Bragg Grating Temperature Sensor |
0.18mm |
|
Weight of Seamless Steel Tube Used for Fiber Bragg Grating Temperature Sensor |
Approximately 3.2g/m (excluding connectors) |
|
Tensile Strength of Fiber Bragg Grating Temperature Sensor |
>400N (excluding connectors) |
|
Lateral Pressure Resistance of Fiber Bragg Grating Temperature Sensor |
>9000N (excluding connectors) |
|
Compression Strength of Fiber Bragg Grating Temperature Sensor |
>180Mp (excluding connectors) |
|
Tail-End Packaging of Fiber Bragg Grating Temperature Sensor |
Soldering |
|
※ Optional Features for Armor and Rear-End of Fiber Bragg Grating Temperature Sensor |
Sensor diameter (0.9mm/2.0mm/3.0mm), non-conventional corrosion-resistant solutions. |
